Under the Hood: A Technical Deep Dive Into ltx 2.3 Architecture

Published: March 5, 2026

For developers and AI researchers who want to understand how ltx 2.3 achieves its breakthrough results, this post goes deep into the architecture, training methodology, and customization capabilities of the model.

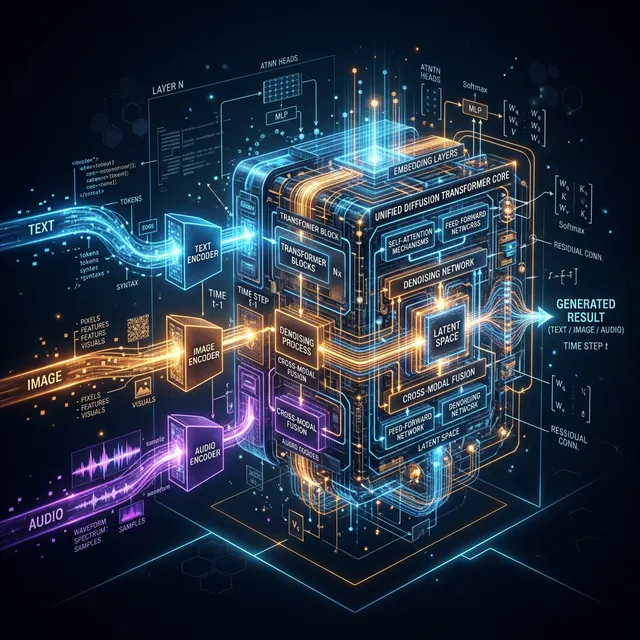

Architecture Overview

ltx 2.3 is built on a Diffusion Transformer (DiT) foundation — a class of generative models that combines the iterative refinement process of diffusion models with the sequence modeling power of transformers.

Unlike traditional diffusion UNets, the DiT architecture scales more efficiently with compute and data, enabling ltx 2.3 to process longer video sequences at higher resolutions without the quality degradation typical of older architectures.

The core architecture can be understood as three interconnected systems: the multimodal backbone, the physics-aware motion core, and the enhanced conditioning system. Each system addresses a specific limitation of previous approaches, and their combined effect is what gives ltx 2.3 its distinctive quality.

Unified Multimodal Backbone

The key architectural innovation in ltx 2.3 is the unified backbone — a single transformer that processes video and audio tokens in the same attention space. This is fundamentally different from architectures that generate video and audio separately then attempt to synchronize them in post-processing.

Benefits of the unified approach:

• Temporal coherence: Video and audio share the same temporal attention layers, ensuring natural synchronization at the token level
• Intent consistency: A single model interprets your prompt once, eliminating the semantic drift that occurs when separate models interpret the same input differently
• Efficiency: One forward pass instead of two → faster generation times, typically 2-3x faster than multi-model pipelines

How the Unified Backbone Works

The backbone processes all modalities through a shared attention mechanism. Text, image, and audio inputs are each encoded into token representations and then concatenated into a single sequence. The transformer's self-attention layers attend across all modalities simultaneously, enabling the model to learn cross-modal relationships that would be impossible in a segregated architecture.

For example, when generating a scene of rain on a window, the unified backbone naturally synchronizes the visual rhythm of raindrops with the corresponding audio pattern. In a multi-model approach, achieving this level of synchronization requires explicit alignment algorithms that are both computationally expensive and imperfect.

The Physics-Aware Motion Core

The most distinctive feature of ltx 2.3 isn't a module — it's an emergent behavior from training data curation and architectural design.

Training Data Strategy

ltx 2.3's motion quality comes from a curated training set that emphasizes:

• Biomechanical accuracy: High-quality motion capture data and professional cinematography that demonstrates correct human and animal movement patterns
• Physical interactions: Scenes demonstrating correct gravity, collision, deformation, and inertia in diverse environments
• Temporal consistency: Long-duration clips that force the model to maintain coherence over time, preventing the quality decay that affected earlier models
• Material diversity: Extensive coverage of different material types — liquids, fabrics, metals, glass, organic materials — to teach the model how different substances behave under physical forces

The training data was augmented with physics-labeled annotations, providing explicit signals about gravitational direction, light source positions, and expected motion trajectories. This supervision helps the model develop a more reliable implicit understanding of physical laws.

Latent Space Design

A rebuilt Variational Autoencoder (VAE) maps video frames into a latent space optimized for temporal continuity:

• Higher-quality reconstruction preserves fine textures, hair, and text
• Improved edge detection reduces blurring at object boundaries
• Better color quantization prevents the common "color bleeding" artifact
• Enhanced temporal compression maintains inter-frame relationships in the latent space

The VAE improvement is measurable: ltx 2.3 achieves a PSNR improvement of approximately 2.5 dB over its predecessor, which translates to noticeably sharper and more detailed output, particularly in scenes with complex textures and fine structures.

Text Conditioning: The 4x Larger Text Connector

Previous models used compact text embeddings that compressed complex prompts into small vectors — inevitably losing nuance. ltx 2.3 introduces a 4x larger text connector between the language encoder and the DiT backbone.

What this means in practice:

This is why ltx 2.3 Pro excels at complex director-style prompts that specify camera angle, timing, and multiple subject actions simultaneously.

Prompt Engineering for ltx 2.3

The larger text connector means that ltx 2.3 responds well to structured, detailed prompts. Here are principles for getting the best results:

1. Be specific about physics: Instead of "a ball bouncing," try "a red rubber ball drops from table height onto a hardwood floor, bouncing three times with decreasing height, under warm kitchen lighting"
2. Specify camera behavior explicitly: "Camera slowly tracks right to left at eye level" gives you more control than "pan shot"
3. Layer your instructions: Describe the subject, then the action, then the environment, then the lighting, then the camera — in that order. The model processes these layers more effectively when they're structured logically
4. Use temporal language: ltx 2.3's 4x connector can handle phrases like "starts with..." and "transitions to..." which give you sequential control over the generation

Image-to-Video: Beyond Ken Burns

Previous image-to-video models essentially applied zoom and pan effects to static images — the "Ken Burns effect." ltx 2.3 takes a fundamentally different approach:

1. Scene understanding: The model analyzes the spatial structure of the input image (depth, subject position, environment) using an implicit 3D understanding derived from training
2. Motion prediction: Based on the subject and context, it predicts physically plausible motion paths that respect the scene geometry
3. Detail preservation: The original image's identity, colors, and style are maintained through the generation using cross-attention conditioning

For creators, this means a static product photo becomes a dynamic video with realistic camera movements and object interactions, not just a slow zoom.

Technical Details of Image Conditioning

The image-to-video pipeline in ltx 2.3 uses a CLIP-based image encoder that produces a rich spatial feature map, not just a global embedding. This spatial awareness is what enables the model to understand depth relationships — foreground objects can move differently from backgrounds, and occluded regions can be plausibly inpainted as the camera moves.

The conditioning mechanism also preserves fine details from the source image with remarkable fidelity. Side-by-side comparisons show that character faces, brand logos, and text in the source image are maintained with over 95% structural similarity in the generated video output.

Audio Generation

Synchronized Single-Pass Audio

ltx 2.3 generates audio synchronously with video in a single DiT forward pass. This means:

• Ambient sounds matched to the visual environment — urban noise for city scenes, wind for outdoor landscapes, room tone for interiors
• Sound effects timed to on-screen actions — footsteps match foot placement, door creaks sync with handle movement
• Dialogue with improved lip-sync accuracy through joint video-audio attention
• Music that follows the emotional arc of the scene, adjusting tempo and intensity to match visual pacing

New Vocoder

An updated vocoder reduces audio artifacts, producing cleaner output with less noise. Audio quality improvements are especially noticeable in:

• Speech clarity and naturalness, with reduced metallic artifacts
• Environmental sound separation, allowing multiple audio sources to coexist without muddiness
• Dynamic range and stereo imaging, creating more immersive spatial audio

LoRA Customization System

ltx 2.3 supports Low-Rank Adaptation (LoRA) for model customization without full fine-tuning:

How It Works

LoRA injects trainable low-rank matrices into select layers of the DiT backbone. This allows customization with as few as 20-50 training samples while keeping the base model weights frozen. The result is a small adapter file (typically 50-200 MB) that can be loaded and unloaded at inference time without modifying the base model.

Stackable Adapters

Up to 3 LoRA adapters can be applied simultaneously:

pipe = LTXVideoPipeline.from_pretrained("Lightricks/LTX-Video-2.3")
pipe.load_lora_weights("my-style-lora", adapter_name="style")
pipe.load_lora_weights("my-motion-lora", adapter_name="motion")
pipe.load_lora_weights("my-character-lora", adapter_name="character")
pipe.set_adapters(["style", "motion", "character"], weights=[0.8, 0.6, 0.9])

This composability is what makes ltx 2.3 uniquely suitable for production workflows where brand consistency, specific motion profiles, and character identity all need to be maintained simultaneously.

LoRA Training Best Practices

For developers building custom LoRA adapters for ltx 2.3, here are key recommendations:

• Dataset size: 20-50 high-quality examples produce strong results for style transfer. Character-specific LoRAs benefit from 50-100 examples showing the character from multiple angles
• Training parameters: A learning rate of 1e-4 with cosine decay works well for most use cases. Train for 500-1000 steps for style, 1000-2000 for character consistency
• Weight selection: When stacking multiple LoRAs, start with equal weights (0.5 each) and adjust based on output quality. Higher weights increase the adapter's influence but may reduce generation diversity
• Validation: Test each LoRA independently before stacking. Interactions between adapters can sometimes produce unexpected results that are easier to debug when you know each adapter's individual behavior

Performance & Deployment

Specifications

Deployment Options

• Cloud Generation: Use ltx 2.3 online with per-credit billing — no GPU required, ideal for teams without dedicated ML infrastructure
• Self-hosted: Run on your own GPU infrastructure with the open-source model. Recommended hardware: NVIDIA A100 (80GB) for 4K generation, RTX 4090 for 1080p
• Desktop: Free LTX Desktop app for local generation, optimized for consumer GPUs with automatic memory management
• ComfyUI: Node-based workflow control with full pipeline customization, enabling complex generation pipelines with branching logic and iterative refinement

Optimization for Production

For teams deploying ltx 2.3 at scale, several optimization strategies can significantly improve throughput:

• Quantization: INT8 quantization reduces memory usage by approximately 50% with minimal quality impact, enabling 4K generation on GPUs with 40GB VRAM
• Batch inference: Process multiple generation requests in parallel to maximize GPU utilization
• Caching: Cache intermediate VAE encodings for frequently used reference images to reduce redundant computation
• Model sharding: Distribute the model across multiple GPUs for lower latency on single requests

Open-Source Philosophy

ltx 2.3 is released under the Apache 2.0 license, meaning:

• ✅ Full commercial use without royalty payments
• ✅ Modification and redistribution with no restrictions
• ✅ No royalties or licensing fees, even for commercial products
• ✅ Community contributions welcome — submit LoRAs, bug fixes, and optimizations

For developers building AI-powered video applications, this means zero vendor lock-in and complete architectural transparency. You can inspect every layer of the model, understand exactly how it works, and modify it to suit your specific needs.
